History of the world is reach of examples, when good & helpful
inventories, made to simplify humans life, once appeared from another,
frequently ugly view. Information technologies and, at this point
telecommunications are not an exception. Developed in the 1st part of
80th by International Standards Organization (ISO) seven-layer model of
Open System Interconnection (OSI) presents a hierarchical structure,
where each level has strictly assigned job & interface to upper &
lower levels. But developers wish to improve their devices more and more.
For example, second (``channel'' (MAC+LLC)) OSI layer is traditionally responsible
only for receiving/transmitting frames and hardware address resolution, but
modern networking equipment also realize at the same level mechanisms to provide
redundancy, multiplexing, load balancing & separation of information
flows. Unfortunately, security issues at this layer are often left
without attention. In this article we will speak about weakness in
implementation and algorithm of one of the second OSI layer protocols
- Spanning Tree Protocol (STP). This work uses our materials published
in Russian: [2], [4].
Since we're publishing an information about security vulnerabilities
before a fix is ready on the market & since these information may be
used by a malicious person we'll write our article in such a way, so
newbies (also known as ``script kiddies'' or ``black hats'' -
see [1]) would be unable to use this paper as a step-by-step
``howto''. We understand that different people have different opinion to
this issue, but feel that this is almost single possible way to stimulate
vendors to fix bugs much faster. Of course we already notified some
vendors (Cisco, Avaya) about these vulnerabilities, but an answer was
alike: ``unless this gives money we won't make investments''. Well, since
we're interested in high level of security in switches & routers we use,
we have to publish our investigations - thus we 'll make some pressure on
hardware vendors to implement real security in their devices. Also we note,
that vendors should be already informed via bugtraq & some - Cisco & Avaya -
directly. Our first publication in Russian concerning STP vulnerabilities was
made about one year ago.
The volume of our materials written while analyzing STP protocol is too
big to be published in one magazine article. Full information is
available in the Internet at the project's web page ([3]) and
with the same restrictions which apply also to this publication (see license
below).
As a complain against trends to inhibit publications of security
vulnerabilities in software (these tendencies are widely known to the
public as a DMCA law in U$ [Digital Millennium Copyright Act]), these
materials are a subject to the following license:
License agreement.
This paper is an intellectual property of it's authors:
Oleg Artemjev and Vladislav Myasnyankin (hereinafter - writers).
This paper may be freely used for the links, but its
content or its part cannot be translated into foreign
languages or included into any paper, book, magazine,
and other electronic or paper issues without prior
WRITTEN permissions of both writers. Moreover, in case of
using materials of this research or refer to it,
according given license you must provide complete
information: full title, authorship and this license.
You can freely distribute this paper electronically,
if, and only if, all of the following conditions are met:
This license agreement and article are not modified,
including its PGP digital signature. Any reformatting of the text is
prohibited.
The distribution does not contradict the given license.
Distribution of this paper in the countries with the legislation
containing limitations similar to American DMCA contradicts the given
license. At the moment of publication this includes United States of America
(including embassies,naval vessels, military bases and other areas of
US jurisdiction. Moreover, reading this paper by citizens of such a country
violates this license agreement and may also violate their law. Nevertheless,
distribution of any links to this document is not a violation of the given license.
This paper is provided by the authors ``as is'' and any express or implied
warranties, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose are disclaimed.In
no event shall the writers be liable for any direct,indirect,
incidental, special, exemplary, or consequential damages (including, but
not limited to, procurement of substitute goods or services; loss of
use, data, or profits; or business interruption).
Writers claim this article for educational purposes
only. You should not read this paper, if you disagree not to
use it any other way.
The given license agreement is subject to change
without warning in the consent of both writers.
Well, what is STP?
Main task of STP protocol is automated management of network topology
with redundant channels. In general, almost all type of networks are
unable to accept rings in their structure. Really, if network equipment
is connected with superfluous lines, then without additional measures frames
would be delivered to recipient as a several one - this would result in
a fault. But business require redundancy, thus there is an STP - it takes
care that all physical rings are logically disabled unless one of lines
gives a fault - in this case STP enables line that is currently in
reserve. Well, at each point of time only one of several duplicate links
can be enabled & there should be ability to switch between them in a case
of a fault or physical topology change. Of course, this operation can be
performed by an administrator, but more elegant, time and resource saving
decision is using STP, which do not require 24x7 personnel assistance.
STP begin its work from building a tree-alike graph, which begins at
``root''. One of STP-capable devices becomes a root after winning
elections. Each STP-capable device (it could be a switch, router or
other equipment, hereby & later for simplicity called ``bridge'')
starts from power-up claiming that it's root one by sending special data
named Bridge Protocol Data Unit (BPDU - see [9]) through all ports.
The receiver's address in a BPDU packets is a group (multicast) address -
this allows BPDUs pass through non-intellectual (dumb) equipment like hubs
and non STP-aware switches.
In this case as we say ``address'', we mean MAC-address, since STP is working
at th level of Media Access Control (MAC). Thereby all issues about
STP & its vulnerabilities apply equal to the different transmission methods,
i.e. Ethernet, Token Ring & others.
After receiving BPDU from other device the bridge compares
received parameters with its own & depending to result decide to stop or keep
insisting on its root status.
At the end of elections the device with the lowest value of the bride
identifier becomes a root one. The bridge identifier is a combination of
bridge MAC address & defined bridge priority. Obviously in a network with
single STP compatible device it 'll be a root one.
Designated root (or ``Designated Root Bridge'', as named by standard)
doesn't have any additional responsibilities - it only used as a beginning point to
start building topology graph. For all other bridges in a network STP
defines the ``Root Port'' - the nearest to the root bridge port. From
other ports connected to the bridge it differs by its identifier -
combination of its MAC address & defined for the port priority.
The Root Path Cost is also a value meaningful for STP elections - it is being
build as a sum of path costs: to the root port of given bridge & all
path costs to root ports of all other bridges on the route to Root one.
In addition to the ``main'' Root Bridge STP defines a logical entity called
``Designated Bridge'' - owner of this status becomes main bridge in
serving of given LAN segment. This is also a subject of elections.
Similarly STP defines for each network segment the Designated Port
(which serving given network segment) & corresponding to it ``Designated
Cost''.
After all the elections are finished, network goes into stable phase.
This state is characterized by the following conditions:
There is only one device in a network claiming itself as a Root one, all others are
periodically announcing it.
The Root Bridge periodically sends BPDU through all its ports. The sending interval is named
``Hello Time''.
In each LAN segment there is a single Designated Root Port and all traffic
to the Root Bridge is going through it. Compared to other bridges, it has lowest
value of path cost to the Root Bridge, if these values are identical - the port with a lowest
port identifier (MAC plus priority) is assigned.
BPDUs are being received & sent by STP-compatible unit on each port, even those that are
disabled by STP protocol. Exceptionally, BPDUs are not operationing on ports that are disabled by
administrator.
Each bridge forwards frames only between Root Port & Designated Ports
for corresponding segments. All other ports are blocked.
As follows from the last item, STP manages topology by changing port states within following
list:
Blocking.
The port is blocked (discards user frames), but accepts STP BPDUs.
Listening.
1st stage before forwarding. STP frames (BPDUs) are OK, but user
frames are not processed. No learning of addresses yet, since it may give wrong data in
switching table at this time;
Learning.
2nd stage of preparation for forwarding state. BPDUs are processed in full,
user frames are only used to build switching table and not forwarded;
Forwarding.
Working state of ports from user view - all frames are processed - STP
& user ones.
At time of network topology reconfiguration all bridge ports are in one
of three states - Blocking, Listening or Learning, user frames are not
delivered & network is working only for itself, not for user.
In stable state all bridges are awaiting periodical Hello BPDUs from Root
Bridge. If in the time period defined by Max Age Time there was no Hello
BPDU, then bridge decides that either Root Bridge is Off,
either the link to is broken. In this case it initiates network topology
reconfiguration. By defining corresponding parameters it is possible to
regulate how fast bridges will find topology changes & enable backup
links.
We 'd like to say some words about STP functioning specific to networks
supporting virtual LANs (VLANs). Enabling this mode on a switch is
logically equivalent to replacing it with a few (by number of VLANs)
switches, even when physically there's no separation between VLANs
media. It 'd be obvious to find there different STP trees, but this
option is supported by only some equipment(i.e. Intel 460T supports only
one STP tree for all VLANs; with Avaya's Cajun switches family you'll
find separate Spanning Tree only in high models). These facts are
destroying a hope to localize possible STP attacks in one VLAN. But there
are threats existing even with separate spanning trees per VLAN.
Some vendors realize in their devices extended STP-related futures,
enhancing their abilities, like Spanning Tree Portfast in Cisco
(see [11]) & STP Fast Start in some 3Com switches
(see [12]). We'll show essence of them below.
Also, some companies support their own implementation of STP, i.e. Dual
Layer STP from Avaya. Plus, STP modifications functioning for other
network types (i.e. DECnet). Here we'd like to point on their principle
similarity and differ only in details and extended abilities (so, in
Avaya Dual Layer STP trees could be terminated at the 802.1q-capable
ports). All these implementation suffer from the same defects as their
prototypes. Unpublished proprietary protocols give one more problem -
only developers could solve their problems,
since full reverse engineering is much harder then small required to
attack partial one & by publishing results some would make an evidence
of reverse engineering, which may be illegal.
Possible attack schemes
An idea of 1st group of attacks lies practically ``on the surface''.
Essentially the principle of STP allows easily organize Denial of
Service (DoS) attack. Really, as defined by standard, on Spanning Tree
reconfiguration all ports of involved devices does not transfer user
frames. Thus, to drop a network (or at least one of its segments) into
unusable state it's enough to master STP-capable device to do infinite
reconfiguration. It could be realized by initiating elections of, for
example, root bridge, designated bridge or root port - practically any
of electional object. ``Fortunately'' STP has no any authentication
allowing malicious users easily reach this by sending fake BPDU.
A program building BPDU could be written in any high level language
having raw-socket interface (look at C sample and managing shell script
at our project home page - [5], [6]).
Another way - one may use standard utilities for managing
Spanning Tree, i.e. from Linux Bridge project([13]),
but in this case its not possible to manipulate STP parameters with
values that doesn't fit into standard specification.
Below we will examine base schemes of potentially possible attacks.
Eternal elections.
Attacker monitors network with a sniffer (network analyzer) & awaits
for one of periodical configuration BPDUs from the root bridge
(containing its identifier). After that he sends into a network a BPDU
with identifier that is lower then received one (id=id-1) - thus it
has pretensions to be a root bridge itself & initiates elections. Then it
decrement identifier by 1 and repeat procedure. Each step
initiates new elections wave. When identifier reach its lowest value attacker
return to the value calculated at beginning of the attack. As a result network will be
forever in elections of the root bridge and ports of STP-capable devices
will never reach forwarding state while attack is in progress.
Disappearance of root.
With this attack there is no need to get current root bridge identifier
- the lowest possible value is a starting one. This, as we remember,
means maximum priority. At the end of elections attacker stops sending
BPDUs, thus after a timeout of Max Age Time gives new elections. At new
elections attacker also acts as before (and wins). By assigning minimum
possible Max Age Time it is possible to get situation when all the
network will spend all time reconfigurating, as it could be in
previous algorithm. This attack may occur less effective, but it has
simpler realization. Also, depending to network scale and other
factors (i.e. Forward Delay value, that vary speed of switching into a
forwarding state) the ports of STP-capable devices may never start
forwarding the user frames - so we cannot consider this attack as
less dangerous.
Merging-splitting of the trees.
In a network with VLAN support it may be possible to lunch a modification of
discussed above attack. If an attacker connects its workstation supplied with two
interfaces to ports assigned to different VLANs & starts BPDU
forwarding from one VLAN to another, then STP trees in both VLANs each
appear to ``see'' its neighbor, that will result in starting elections
of root bridge for new merged tree. When the elections are finished the attacker
stops forwarding BPDUs, that lead after Max Age Time interval in new reconfiguration,
since the merged tree is now split. This may be realized without
software, by hands, by linking ports together with a cross-over cable. As you
may see this attack is effective on the networks supporting port based VLANs
with different STP trees for each one. Fortunately in big organizations
an access to the network hardware ports is restricted.

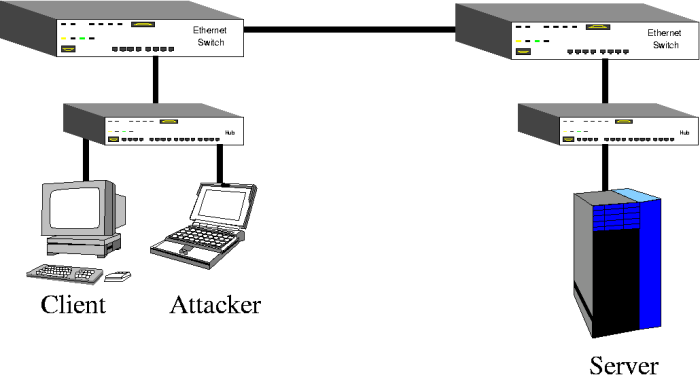

Figure 1: Server and client connected to different bridges
Local Denial of Service.
Attacker may make Denial of Service not for the entire network, but just on
a part of it. There could be many motivations, i.e. it may isolate
victim client from real server to make ``fake server'' attack. Lets
look for realization of this type of attack on example. On the picture
1 server is connected to one switch & victim is
connected to another one (connectivity to the bridge may include hubs).
Attacker needs to fool nearest switch & make it think that he(she)
has better way to the bridge that serves server computer. In terms of
STP, attacker must initiate & win elections of designated bridge for
server segment. As a result of winning such elections the channel
between bridges would be disabled by setting corresponding ports to the
blocked state. By destroying connectivity between segments attacker may
either try to fool client claiming itself as a real server (compare with
well known Mitnick attack) or just feel satisfied if mischief is a
subject.
BPDU filter.
Main task of STP is to protect network from
making rings (loops) in a network. Obvious way to attack is to set a ring
that is undetectable by STP. It may be reached by organizing physical
ring with filtering there of all BPDU frames. This attack would give
either partial Denial of Service either notable speed degradation if
connected segments has different speeds. Really, if
you will cross-connect two ports into a ring and then run ping requests - soon
responses would arrive slower & some time later would not return at all - frames
will be unable to travel, since all bandwidth would be eaten by frames
auto-regeneration in the ring.
Man In the Middle.
Next two attacks have principal difference from already discussed - the
goal of them not to achieve denial of service, but data penetrating,
that impossible in the normal network operation mode. In short, this
attack uses STP to change logical structure of network to direct
sensitive traffic via attacker's station. Let's look at the
1 picture. As against mentioned above partial denial
of service attack, suppose that attackers station is equipped with two
NICs, one Network Interface Card is connected to the ``client's''
segment, and another - to the ``server's'' segment. By sending appropriate
BPDU attacker initiates elections of the designated bridge for both
segments and wins them. As a result, existing link between switches
will shut down (will switch to the blocking state) and all inter-segment
traffic will be directed via attacker's station. If intruder's plans
does not include denial of service, he(she) MUST provide frame
forwarding between NICs. It's a very simple task if attacker doesn't
needed to change traffic in some manner. This may be done by either
creating simple program module or using built-in STP functions of the
operating system, for example with Linux Bridge Project (see [13]),
which contribute complete bridge solution. Of course, an
intruder must take in account ``bottle neck'' problem - inter-segment link
may work at 100Mb (1Gb) speed while client's ports may provide only 10Mb
(100Mb) speed, which lead to the network productivity degradation and
partial data loss (but software realization of back pressure shouldn't be a
big deal).
Of course, if attacker wants to ``edit'' traffic on the fly on a heavy
loaded link, he(she) may need more powerful computer (both CPU and RAM).
Fortunately, this attack is impossible in networks with single switch -
try to realize it in these conditions and you will get partial DoS. Also
note, that realization is trivial only when attacker is connected to
neighbored switches. If connections are made to the switches without
direct link, there is additional task - guessing at least one Bridge ID,
because STP-capable devices never forward BPDU, sending on the base of
received information its own, instead.
Provocated Sniffing.
In general, sniffing is data penetrating by switching network interface
into promiscuous mode. In this mode NIC receives all the frames, not only
broadcasts and directed to it. Everybody knows, that in the switch-based
network it should be impossible for intruder to catch packets directed
to other stations. That is because switch (in opposite to hub), sends
frames only to appropriate port, just where receiver is connected.
Usually attackers resolve this problem by generating packet storm with
random different source MAC-addresses. Since switch doesn't have
infinite memory, switching table (table containing MAC/port destination
pairs) is being filled by junk information. Different bridge models do
different things. Some (smart) just shut down flooding port(or whatever
set by administrator), others(all dumb, mean most of present devices) simply
discard old records from the switching table and starts work as hub.
The same results can be achieved using STP. According specification after
tree reconfiguration (for example, after designated bridge elections)
STP-capable device MUST remove from the switching table all the records
(except those statically set by administrator), included before switch
gone into listening and learning state. As a result switch will go into
hub mode for some time while it refill switching table. Of course, you
already noted weakness of this theory: switch learns too fast. After
receiving first packet from victim it writes its MAC address into switching
table and stops to broadcast frames to all ports. However, we must not
ignore this attack. This is because manufacturers include in their products
some ``extensions'' to core STP. Just after elections network is unreachable.
To reduce down time some manufacturers (Cisco, Avaya, 3Com, HP, etc) include
an ability to discard listening and learning states on the ``user'' ports (ports
with servers and workstations connected to). In other words, port is switching
from ``blocked'' state directly to ``forwarding'' state. This ability has
different names: Spanning Tree Portfast (Cisco - [11]), STP Fast Start (3Com - [12])
etc. If this ability turned on, eternal elections would lead not to DoS, but
to periodical resets of the switching table, that means hub-mode. Note,
that this function must not be turned ON on the trunk ports, because STP
convergence (finalization of elections to a stable state) not guaranteed
in this case. Fortunately, to achieve its goal an intruder must clear
switching table at least two times fast than interesting packets are
received, that is practically impossible. Packet sniffing in the
switched environment possible also using well-known technique of
arp-poisoning ([14]). Core idea of this technique is to periodically send
arp-replies packets (for a question that was never asked), which
remotely modify arp tables on the ``source'' and ``destination'' computers.
For example, if intruder has MAC=00:00:00:00:00:01, host1 has
IP=192.168.1.1, host2 has IP=192.168.1.2, intruder may send arp reply to
host1 ``192.168.1.2 is at 00:00:00:00:00:01'' and to host2 ``192.168.1.1 is
at 00:00:00:00:00:01''. As a result, all communications between host1 and
host2 will be directed via intruder's NIC. But this attack permits to
sniff only IP packets and only between two addresses. Described STP
attack allow to catch all frames, because it works on the channel level
of OSI and redirects all protocols (including IPX, NETBEUI etc), not only
IP.
Other possible attacks
These attacks are unchecked, but we suppose, that them are possible.
STP attack on the neighbor VLAN
According 802.1q a bridge with VLAN support can receive on the given
channel either all the frames, or the frames with appropriate tags. In
VLAN-divided networks frames containing STP packets will be transmitted
via trunk link with appropriate tags. So, there is an ability to attack
VLAN by sending STP packets in tagged frames to the port, which doesn't
support tags. Fortunately, according 802.1q a bridge may filter out
those frames. For example, Cisco devices drop down tagged frames on the
tag-incompatible ports (at least, users), that makes this attack
impossible. But note, that bridge MAY, not MUST drop these
frames.
We also must understand, that WAN links are vulnerable to STP attacks
too. This because BCP specification declare STP over PPP support.
Surprising consequence of this fact is an ability to attack ISP network
via dial-up connection. According RFC2878 (BCP description, see [8]) STP turned
on on the PPP link if both sides requesting it, that never takes place in
practice. Nevertheless, STP supported by default on the majority Cisco
routers, at least models, capable to combine virtual interfaces into
bridge group.
As you may read in the Generic Attribute Registration Protocol (GARP)
specification by 802.1d the STP is a subset of GARP. Some of discussed above attack work
against GARP and, in particular, Generic VLAN Registration Protocol
(GVRP). Therefore VLANs cannot be used as single security measure in
network. 802.1q standard originated from 802.1d and inherits all its
defects.
We may continue our research of non-standard using STP. All new
materials will be available on the project web-page (see [3]).
Brief resume: what types of networks are vulnerable to the STP attacks?
Unfortunately - all networks supporting 802.1d and, with some
restrictions, those that support 802.1q. While some devices support STP
only if administrator turned on appropriate option during configuration
process, others support STP by default, ``from the box'' (most of current
vendors enable STP by default). Ask your admin: is our network needs STP
support? Is STP support turned off on our hardware?
Detection and protection.
What is the main difficulty with STP-based attacks detection? The
problem is that for this attack used standard C-BPDU packets, so
presence STP packets on the network is not strong characteristic of
attack. Other difficulty is that Intrusion Detection System must have
in its disposal information about network scheme, at least, list of
network devices (with bridges IDs) to distinguish usual STP traffic from
intruder's packets. Moreover, as a main goal of attack is network
availability, IDS must have its own alarm channel. Alarm messages can be
transmitted to the security officer via connected to IDS station modem,
or mobile phone, or via direct link between IDS and security console.
But note that in this case possible false negatives - attack will not
detected if malicious BPDUs affect network hardware before IDS disclose
them. Each real network normal state can be described in STP terms. For
example, in a network which normally doesn't use STP appearance of STP
packets most likely signify an STP attack attempt. Series of Root Bridge
elections with sequential lowering Root Bridge ID may signify ``eternal
election'' attack. In a network with fixed list of device IDs appearance
of BPDUs with new ID in most cases may signify an attack (except, of
course some ridiculous cases like installation of new device by ones of
poor-coordinated administration team). We suppose, that most effective
solution is adaptive self-learning IDS using neural networks technology,
because the can dynamically compare actual network state with ``normal''
state. One of most significant measure is STP fraction in total traffic
amount.
What can network administrators do while problem exists?
If STP is not barest necessity for your network, it must be disabled. As we
noted above, in most devices STP is enabled by default.
In many cases backup links can be controlled using other mechanisms like
Link Aggregation. This feature supported by many devices, including
Intel, Avaya etc.
If hardware support individual STP settings on each port then STP must
be switched off on all ports except tagged port connected to other
network hardware, but not user workstations. Especially this must be
taken in account by ISP, because malicious users may attempt to make DoS
against either ISP network and other client's networks.
If possible administrators must to segment STP realm, i.e. create
several independent spanning trees. Particularly, if two network segment
(offices) connected via WAN, STP on this link must be switched off.
Conclusion
Each complicated system inevitably has some errors and communications is
not an exclusion. But this fact is not a reason to stop evolution of information
technologies - we can totally escape mistakes only if we do nothing.
Meanwhile increasing complexity of technologies demand new approach to
development, an approach, which takes in account all conditions and factors,
including information security. We suppose that developers must use new methods,
like mathematical simulation of produced system, which takes in account not
only specified controlling and disturbing impacts on the system, but also
predicts system behavior when input values are outside of specified range.
It is no wonder that developers in first place take in account primary goal
of system creation and other questions gives little consideration. But if we
don't include appropriate security measures while system development, it is
practically impossible to ``make secure'' this system when it is already
created. At least, this process is very expensive, because core design
lacks are hard to detect and too hard (some times - impossible) to repair
in contrast to implementation and configuration errors.
Our article in Russian in LAN-magazine: http://www.osp.ru/lan/2002/01/088.htm , also there, in paper:
Russia, Moscow, LAN, #01/2002, published by ``Open Systems'' publishers.
ANSI/IEEE 802.1d (Media Access Control, MAC) and ANSI/IEEE 802.1q
(Virtual Bridged Local Area Networks) can be downloaded from http://standards.ieee.org/getieee
Vladislav V. Myasnyankin, security expert, author and translator
of several IT security related papers. At present time he works as Chief
Information Security Officer at the bank.
Oleg K. Artemjev, security expert, currently employed at car holding
as a system administrator.
